TI德州仪器 AD5246 产品介绍

2026-04-14 0次

说明

128 Position
End-to-End Resistance 5kΩ, 10kΩ , 50kΩ , 100kΩ

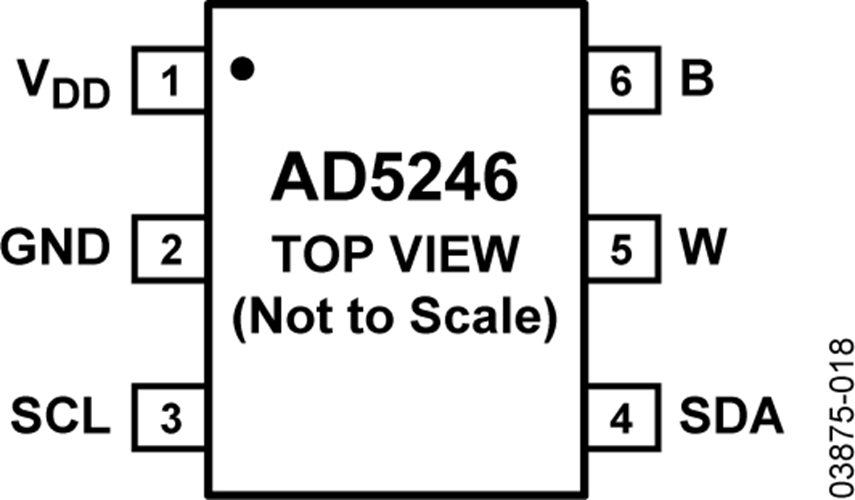

Ultra-Compact SC70-6 (2 mm x 2.1 mm) Package
I²C Compatible Interface
Full Read/Write of Wiper Register
Power-on Preset to Midscale

Single Supply +2.7 V to +5.5 V
Low Temperature Coefficient 45 ppm/°C
Low Power, I_DD=3 µA typical
Wide Operating Temperature –40°C to +125°C
Evaluation Board Available
Available in lead-free (Pb-free) package

特性

The AD5246 provides a compact 2 mm × 2.1 mm packaged solution for 128-position adjustment applications. This device performs the same electronic adjustment function as a variable resistor. Available in four different end-to-end resistance values (5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments.

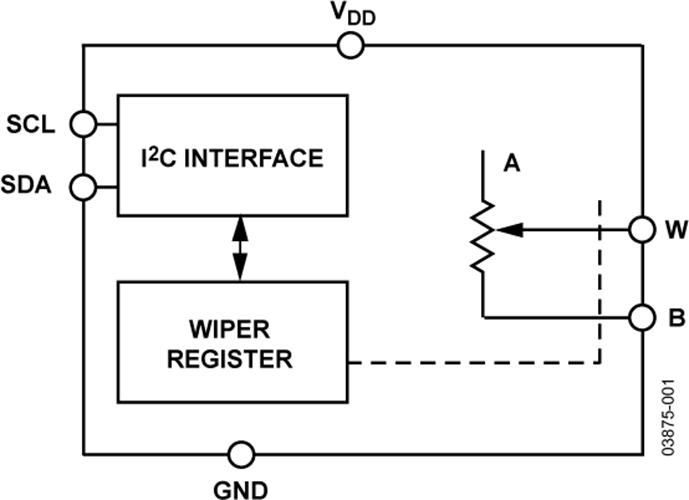

The wiper settings are controllable through the I2C compatible digital interface, which can also be used to read back the present wiper register control word. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC¹ latch.

Operating from a 2.7 V to 5.5 V power supply and consuming 3 μA allows for usage in portable battery-operated applications.

APPLICATIONS

Mechanical potentiometer replacement in new designs

Transducer adjustment of pressure, temperature, position,chemical, and optical sensors

RF amplifier biasing

Automotive electronics adjustment

Gain control and offset adjustment

¹The terms digital potentiometer, VR, and RDAC are used interchangeably in this document.
