说明

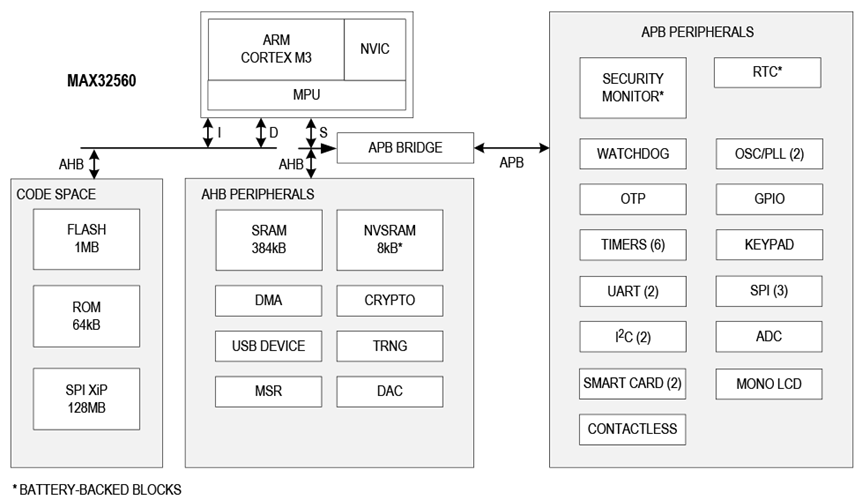

Arm Cortex M3 Processor Core Allows for Easy Integration into Applications
- 108MHz Core Operating Frequency Through PLL
- 1MB Dual-Bank Flash Memory with Cache
- 384KB System SRAM
- 8KB AES Self-Encrypted NVSRAM
Security Features Facilitate System-Level Protection
- ISO 14443 type A/B EMV Compliant Contactless Reader with Internal Transceiver
- Secure Boot Loader with Public Key Authentication
- AES, DES and SHA Hardware Accelerators
- Modulo Arithmetic Hardware Accelerator (MAA) Supporting RSA, DSA, and ECDSA
- 10-Line Secure Keypad Controller
- Hardware True Random-Number Generator
- Die Shield with Dynamic Fault Detection
- 6 External Tamper Sensors with Independent Random Dynamic Patterns
- 256-Bit Flip-Flop-Based Battery-Backup AES Key Storage
- Temperature and Voltage Tamper Monitor
- Real-Time Clock
Integrated Peripherals Reduce External Component Count
- Triple-Track Magnetic Stripe Head Interface
- Two ISO 7816 Smart Card Interface with Integrated Transceiver (1.8V, 3V, and 5V)
- USB 2.0 Device with Internal Transceiver and Dedicated PLL
- 3 SPI Ports, 2 UART Ports, and 2 I²C Controller
- 6 Timers, 4 with PWM Capability
- Up to 68 General-Purpose I/O Pins
- 2-Channel, 10-Bit ADC and 1-Channel, 8-Bit DAC
- Monochrome LCD Controller
- 4-Channel DMA Controller
- 1 SPI Execute in Place (XiP) Master
Power Management Optimizes Battery Life and Reduces Active Power Consumption
- Single 3.3V Supply Operation*
- Integrated Battery-Backup Switch
- Clock Gating Function
- Low-Current Battery-Backup Operation
