说明
- High common-mode transient immunity: 180 kV/μs typical
- High robustness to radiated and conducted noise
- Low propagation delay
- 6.2 ns typical (10 ns maximum) for 5 V operation
- Low dynamic power consumption, <1.65 mA/ch at 1 Mbps
- 2.25 V to 5.5 V level translation
- 150 Mbps maximum guaranteed data rate
- High temperature operation: 125°C
- Safety and regulatory approvals
- UL recognition per UL1577
- 5700 V rms (SOIC_IC)
- 3000 V rms (SOIC_N)
- VDE certificate of conformity
- VIORM = 1173 VPEAK (SOIC_IC)
- VIORM = 636 VPEAK (SOIC_N)
- CSA component certification per IEC 62368-1, IEC60601-1, and IEC 61010-1
- TÜV SÜD component certification per EN 62368-1
- CQC component certification per GB4943.1-2022
- UL recognition per UL1577
- ±8 kV IEC 61000-4-2 ESD protection across isolation barrier
- ±4 kV HBM ESD protection on input/output pins
- Fail-safe high (N1) or low (N0) options
- SOIC_N Backward compatibility with
- ADuM1200/ADuM1201/ADuM1210/ADuM1211
- ADuM3200/ADuM3201/ADuM3210/ADuM3211
- ADuM120N/ADuM121N
- AEC-Q100 qualified for automotive applications
- Operating temperature range: −40°C to +125°C

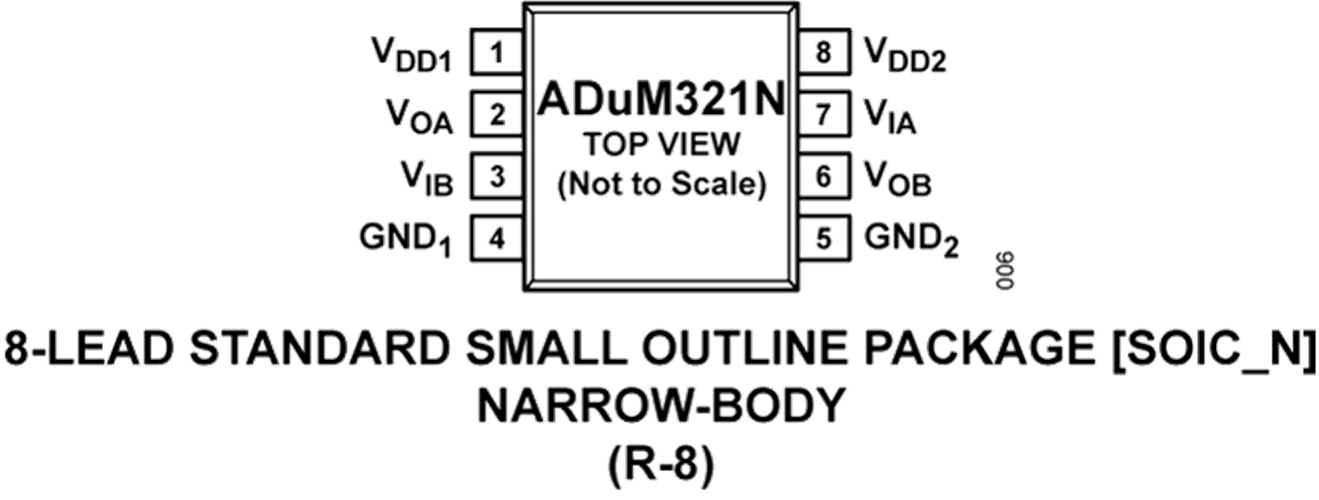

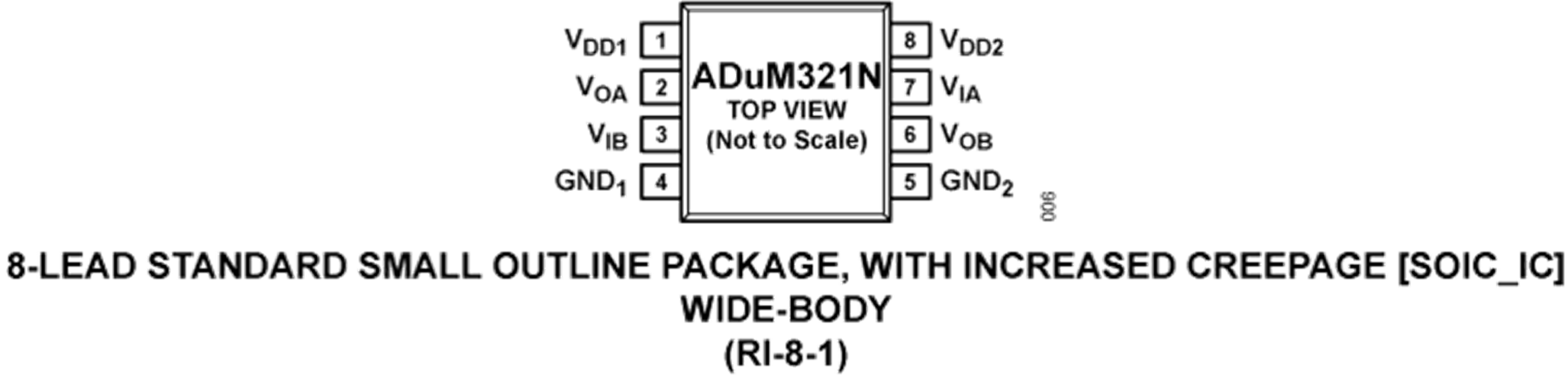

- Available in 8-lead, narrow-body, RoHS-compliant, standard small outline SOIC_N package and 8-lead, wide-body, RoHScompliant, standard small outline SOIC_IC package
特性

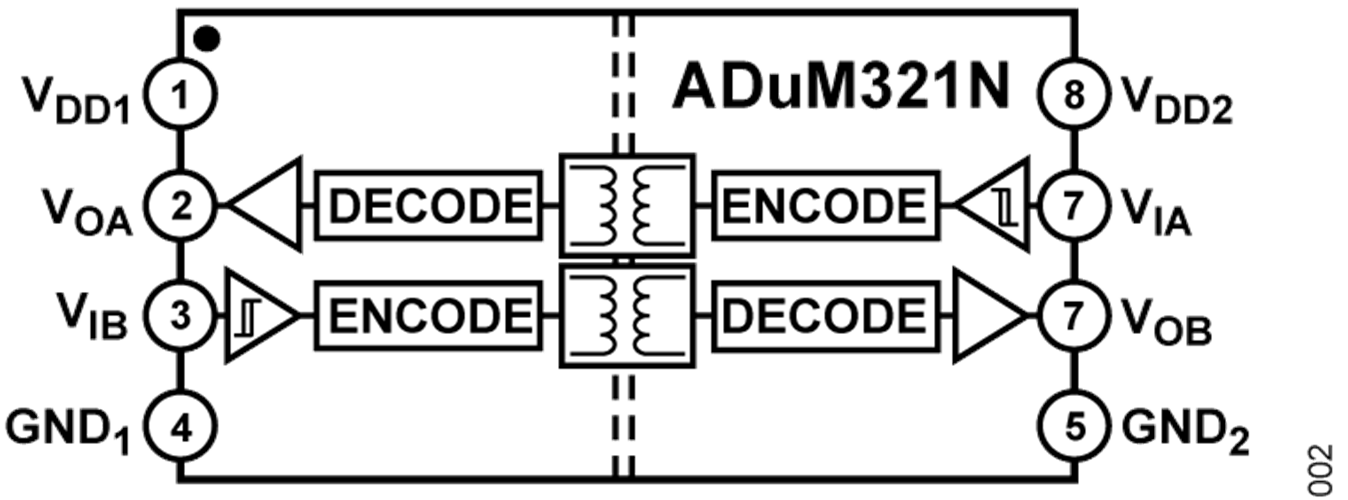

The ADuM320N/ADuM321N are dual-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and meet CISPR 32/EN 55032 Class B limits at 5 Mbps. The maximum propagation delay is 10 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is hard at 3.0 ns maximum.
The ADuM320N/ADuM321N data channels are independent and are available in a variety of configurations with a withstand voltage rating of 5.7 kV RMS and 3.0 kV RMS (for more information, see the Ordering Guide section of the data sheet). The devices operate with the supply voltage on either side ranging from 2.25 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.
Two different fail-safe options are available, by which the outputs transition to a predetermined state when the input power supply is not applied.
APPLICATIONS
- Inverters
- Power supplies
- Industrial field bus isolation
- PWM controller signal isolation
- General-purpose multichannel isolation
Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.
