说明
- AEC-Q100 Qualification for /V Devices
- Reinforced Galvanic Isolation for Digital Signals

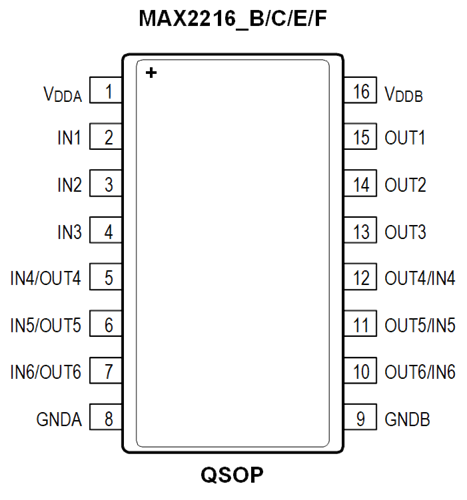

- 16-QSOP with 4mm Creepage and Clearance
- Withstands 3kVRMS for 60s (VISO)
- Continuously Withstands 445VRMS (VIOWM)
- Withstands ±10kV Surge Between GNDA andGNDB with 1.2/50µs Waveform
- High CMTI (50kV/µs, typ)
- 0.71mW per Channel at 1Mbps with VDD = 1.8V
- 1.34mW per Channel at 1Mbps with VDD = 3.3V
- 3.21mW per Channel at 100Mbps with VDD = 1.8V
- Maximum Data Rate up to 200Mbps
- Low Propagation Delay 7ns (typ) at VDD = 3.3V
- Clock Jitter RMS 11.1ps (typ)
- UL According to UL1577
- cUL According to CSA Bulletin 5A
- VDE 0884-11 Reinforced Insulation (Pending)
特性
The MAX22163−MAX22166 are a family of six-channel,reinforced, fast, low-power digital galvanic isolatorsusing Analog Devices’ proprietary process technology.All devices feature reinforced isolation with a withstandvoltage rating of 3kVRMS for 60 seconds. Bothautomotive and general-purpose devices are rated foroperation at ambient temperature from -40°C to +125°C.Devices with /V suffix are AEC-Q100 qualified. See theOrdering Information for all automotive grade partnumbers.
- Industrial
- Isolated SPI, RS-232/422/485, CAN, Digital I/O
- Fieldbus Communications
- Motor Control
- Medical Systems
These devices transfer digital signals between circuitswith different power domains, using as little as 0.71mWper channel at 1Mbps (1.8V supply). The low-powerfeature reduces system dissipation, increases reliability,and enables compact designs. Devices are availablewith a maximum data rate of either 25Mbps or 200Mbpsand with default-high or default-low outputs. The devicesfeature low propagation delay and low clock jitter, whichreduces system latency.
Independent 1.71V to 5.5V supplies on each side alsomake the devices suitable for use as level translators.
The MAX22163 features three channels transmittingdigital signals in one direction and three in opposite; theMAX22164 offers four channels transmitting digitalsignals in one direction and two in opposite; theMAX22165 provides five channels transmitting digitalsignals in one direction and one in opposite; theMAX22166 features all six channels transmitting digitalsignals in one direction.
Applications
- Automotive
- Battery Management System (BMS)
- Chargers
- Hybrid Electric Vehicle
- Inverters
