TI德州仪器 MAX22506E 产品介绍

2026-04-14 0次

说明

High-Speed Operation over Long Distances
- Up to 50Mbps Data Rate
- High Receiver Sensitivity
- Wide Receiver Bandwidth
- Symmetrical Receiver Thresholds
Integrated Protection Increases Robustness
- -15V to +15V Common-Mode Range
- ±15kV ESD Protection (Human Body Model)
- ±7kV IEC 61000-4-2 Air-Gap ESD Protection
- ±6kV IEC 61000-4-2 Contact Discharge ESDProtection
- Withstands Over ±4kV EFT
- Driver Outputs are Short-Circuit Protected
Flexibility for Many Different Applications
- 3V to 5.5V Supply Range
- Low 5μA (max) Shutdown Current
- Available in 8-pin SOIC and μMAX Packages
- -40°C to +125°C Operating Temperature Range

特性

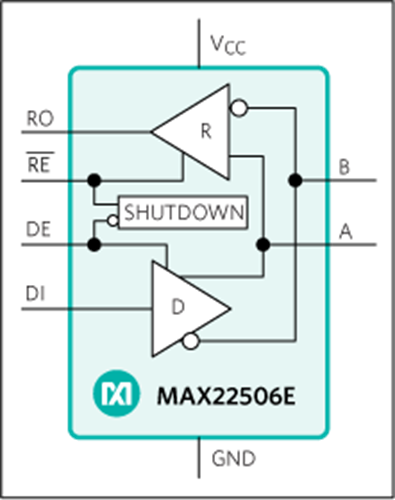

The MAX22506E ESD-protected RS-485/RS-422 transceiveris optimized for high-speed communication up to50Mbps. This transceiver features integrated hot-swapprotection and a fail-safe receiver, ensuring a logic-highon the receiver output when input signals are shorted oropen for longer than 10μs (typ). Additionally, a large receiverhysteresis improves noise rejection and signal integrity.

The MAX22506E is designed to operate in harsh industrialenvironments and is optimized for robust communicationin environments with high levels of electromagnetic interference(EMI).

The MAX22506E is available in an 8-pin SOIC and an8-pin μMAX package. The transceiver operates over the-40°C to +125°C temperature range.
