说明

1:2 2-Wire Multiplexer/Switch
Connect SDA and SCL Lines with 2-Wire Bus
Commands
Supply Independent Bidirectional Buffer for SDA
and SCL Lines Increases Fan-Out
Programmable Disconnect from Stuck Bus
Compatible with I2C and SMBus Standards
Rise Time Accelerator Circuitry
SMBus Compatible ALERT Response Protocol
Prevents SDA and SCL Corruption During Live Board
Insertion and Removal from Backplane
±10kV Human Body Model ESD Ruggedness

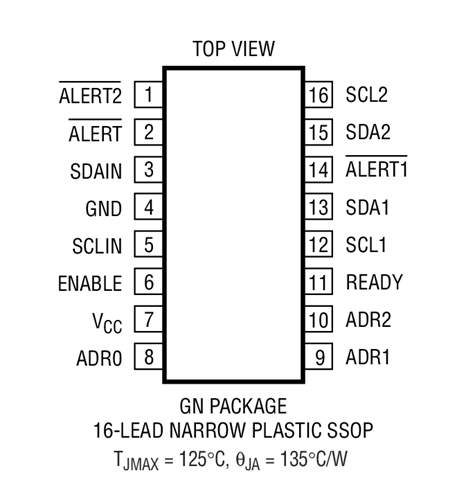

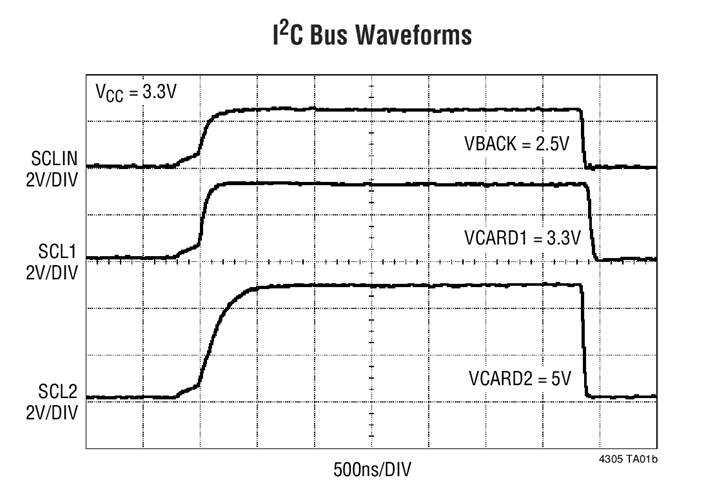

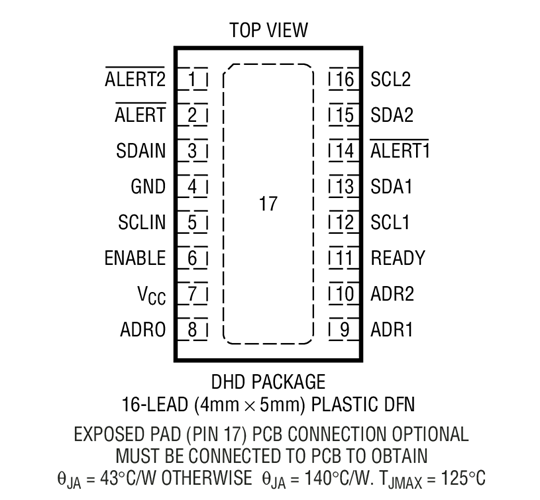

16-Lead (4mm × 5mm) DFN and SSOP Packages

特性

The LTC^®4305 is a 2-channel, 2-wire bus multiplexer with bus buffers to provide capacitive isolation between the upstream bus and downstream buses. Through software control, the LTC4305 connects the upstream 2-wire bus to any desired combination of downstream channels. Each channel can be pulled up to a supply voltage ranging from 2.2V to 5.5V, independent of the LTC4305 supply voltage. The downstream channels are also provided with an ALERT1-ALERT2 inputs for fault reporting. Programmable timeout circuitry disconnects the downstream buses if the bus is stuck low. When activated, rise time accelerators source currents into the 2-wire bus pins to reduce rise time. Driving the ENABLE pin low restores all features to their default states. Three address pins provide 27 distinct addresses. The LTC4305 is available in 16-lead (4mm × 5mm) DFN and SSOP packages.
