说明

USB PD PHY That Is TCPCI-Standard for Use with Any Low-Cost I²C Master (Hub IC, MCU, SoC)
- Ground Offset Adjusted BMC PHY for Maximum Signal-to-Noise Ratio

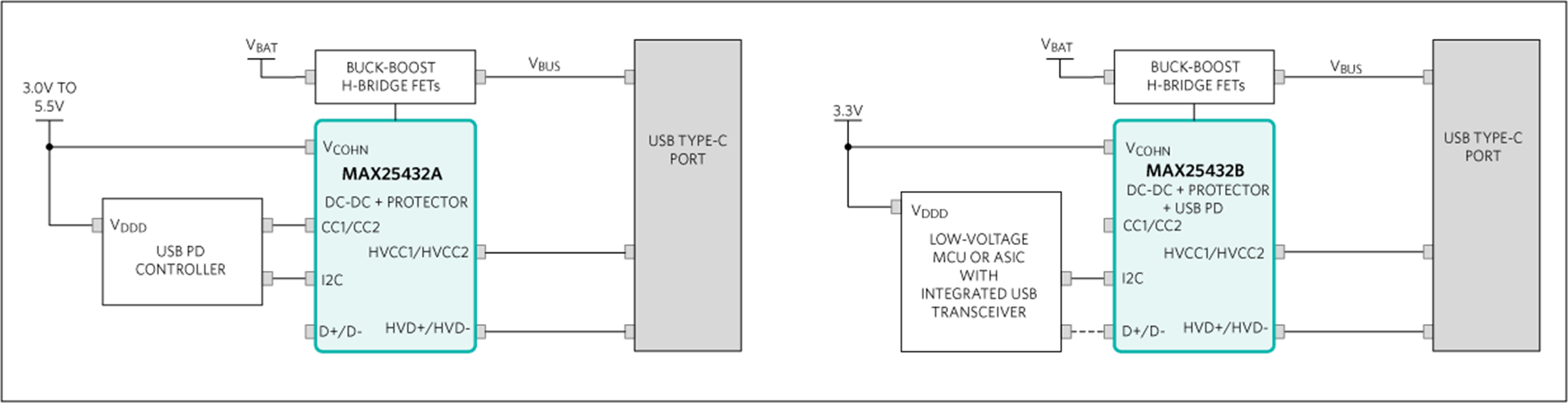

Non-TCPC Versions Available for Protecting External USB PD Controller (MAX25432A)
Integrated Buck-Boost Controller for External H-Bridge
- 4.5V to 36V Input Operating Range
- 220kHz, 300kHz, and 400kHz Switching Frequency
- External Frequency Synchronization and Spread Spectrum for Reduced EMI
USB PD PPS APDO Support – TID 5821
- 10mV Programmable Voltage Step Size
- 25mA Programmable Current Step Size
Integrated Cable Compensation up to 516mΩ
Highest Performance, Safest, and Lowest Cost Passenger Cable-Shield Short-to-Battery Protection
- Minimizes Short-Circuit Currents with a Small, Single-FET Solution
Integrated High-Side Current-Sense Amplifiers, ADC and DAC
Integrated 3.3V to 5.0V, 1.5W, Smart, Reliable V_CONN Switches and Protection
- 50mA Programmable Overcurrent Step Size
Integrated 24V DC Protection on Protected HVD+, HVD-, HVCC1, HVCC2 Outputs
Integrated Legacy USB 2.0 Charging Support Including BC1.2, Apple CarPlay, OTG, and Apple MFi Rev 3x
Integrated ±15kV Air-Gap/±8kV Contact Discharge ISO 10605 and IEC 61000-4-2 ESD Protection
-40°C to +125°C Operating Temperature Range
40-Pin, 6mm x 6mm, TQFN Package with EP
AEC-Q100 and AEC-Q006 Qualified
