说明
- Small Solution
- 2.35V to 5.50V Operating Supply Voltage
- Only One External Component Required
- 150μA Operating Current
- 8μA Power-Down Mode
- Selectable 102.5% to 110% OV Monitors
- Selectable 97.5% to 90% UV Monitors
- Programmable UV and OV Thresholds
- ±1.0% Accuracy (-40°C to +85°C)
- ±1.3% Accuracy (-40°C to +125°C)
- 0.5% Step Size
- Five Fixed-Voltage Monitoring Inputs
- Two Differential DVS Tracking-Voltage Monitoring Inputs with Remote Ground Sense
特性

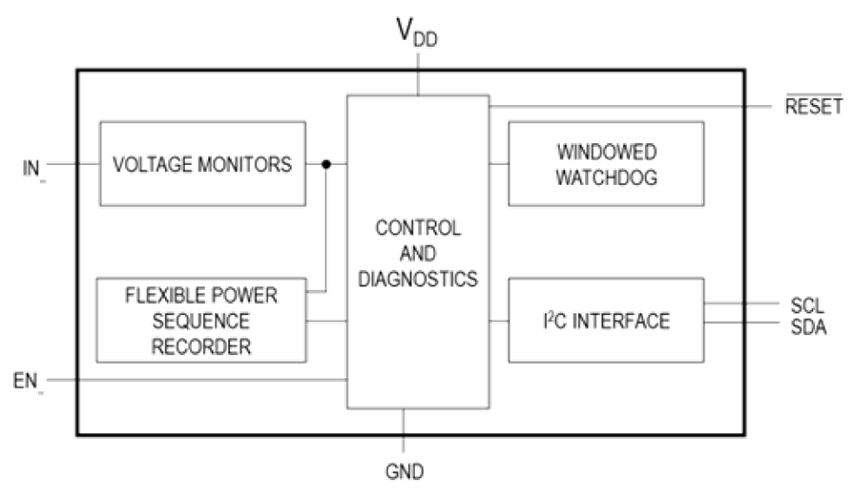

The MAX42500 is a system-on-a-chip (SoC) power system monitor with up to seven voltage monitor inputs. Each input has programmable overvoltage (OV)/undervoltage (UV) thresholds of between 2.5% and 10% with ±1.3% accuracy over the full temperature range. Two of the inputs have a separate remote ground-sense input and support dynamic voltage scaling (DVS) through the integrated I2C interface.
The MAX42500 contains a programmable flexible power sequence recorder (FPSR). This recorder stores power-up and power-down timestamps separately, and supports on/off and sleep/standby power sequences. The MAX42500 also contains a programmable challenge/response watchdog, which is accessible through the I2C interface along with a configurable RESET output.
The MAX42500 improves reliability while significantly reducing system size and component count as compared to separate ICs or discrete components. The MAX42500 is suitable for use in safety functions up to SIL 3. The device is designed to operate over the ambient temperature range of -40°C to +125°C.
APPLICATIONS
- Industrial Process Control
- Robotics
- Remote Sensor Modules
- Power System Supervision
- Microcontroller Unit (MCU)/SoC Monitoring
