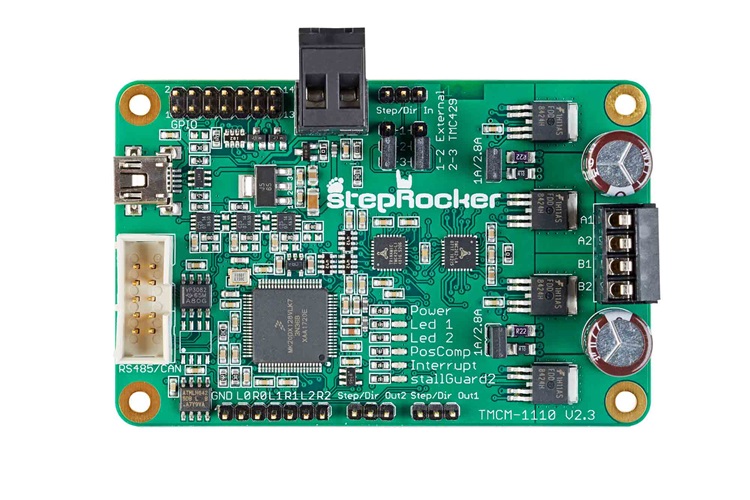

TMCM-1110

量产

Stepper motor controller/driver module 10 3to 0V, 2.8A, 256 µSteps, with USB, S/D and RS485 Interface, StallGuard, CoolStep

TI德州仪器 TMCM-1110 产品介绍

2026-04-14 0次

说明

Single axis controller/driver for 2-phase bipolar stepper motor
2 and 3 axes systems are possible with additional boards configured as slaves

+10 to 30V DC supply voltage
Up to 2.8A RMS motor current
RS485 & USB interface
Multi-purpose inputs and outputs

特性

The TMCM-1110 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic StallGuard2^™, CoolStep^™ and SpreadCycle^™ chopper technology and has a trapezoidal ramp generator. The TMCM-1110 is capable of driving up to 4A of current from each output (with proper heatsinking). It is designed for an operating voltage of 10 to 30V. The device provides a RS485, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL communication.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE
