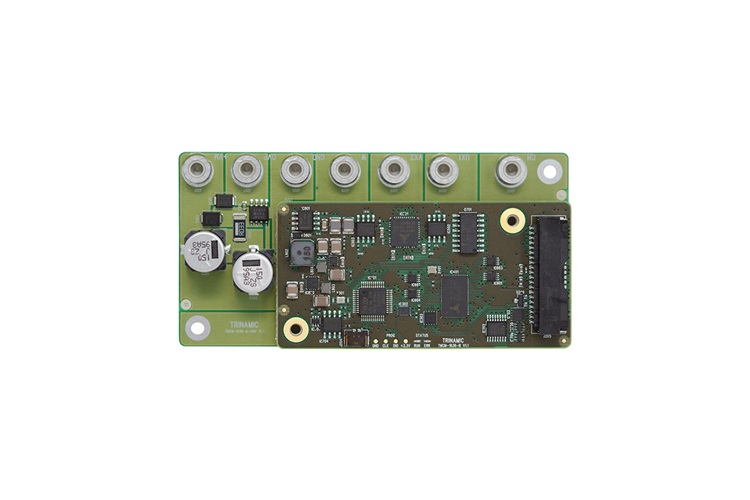

TMCM-1636-48V-CANopen

推荐新设计使用

Servo drive for 3-phase BLDC motors 12 to 28V, 30A, with CAN Interface

TI德州仪器 TMCM-1636-48V-CANopen 产品介绍

2026-04-14 0次

说明

Servo Drive for BLDC and DC Motor
+24V and +48V Supply Version
Up to 1000W continuous
Up to 60A RMS phase current max
CAN interface

Incremental encoder
Digital HALL sensor
Absolute SPI & SSI-based encoder support
Various GPIOs
Motor brake control and overvoltage protection

特性

The TMCM-1636 is a single axis servo drive for 3-phase BLDC motors and DC motors with up to ca. 1000W running at +24V or +48V. It offers a CAN & UART interface with either TMCL or CANopen protocol for communication. TMCM-1636 supports various positions feedback options: 2x incremental quadrature encoders, digital HALL sensor, absolute SPI- and SSI-based encoders. Customization of firmware and hardware is possible.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE
