说明

2.1V to 20V DC Voltage Range
Four 20V H-Bridges
Low RDS(ON) (HS Plus LS): 0.31Ω Typical (TA = +25°C)
Current Ratings per H-Bridge (Typical at +25°C):

Bridge Peak Current IMAX = 1.5AMAX
Full-Scale Current IFS = 0.8ARMS (1.12A Sine-Wave Peak)

Fully Integrated Lossless Current Sensing (ICS)
Eight-Point Motion Controller for Minimum Jerk
Automatic 2D-Line Trajectory with Axis Interpolation
Step/Direction Interface with MicroPlyer™ Step Interpolation
SPI or Single-Wire UART Interface

Two Quadrature Encoder Interfaces
Two Reference Switch Inputs
TriCoder Sensorless Standstill Steploss Detection and Full-Step Encoder
Highest Resolution with 256 Microsteps per Full Step
StealthChop2 Silent Motor Operation
SpreadCycle™ Highly Dynamic Chopper Mode
StallGuard2™ and StallGuard4™ Sensorless Motor Load Detection
CoolStep^® Current Control for Energy Savings up to 75%
Passive Braking and Freewheeling Mode
Bridge Disable, Reset, and Low-Power Mode
Motor Phase and Chip Temperature Measurement
Full Protection and Diagnostics
2.97mm x 3.13mm, 36-Pin WLCSP

特性

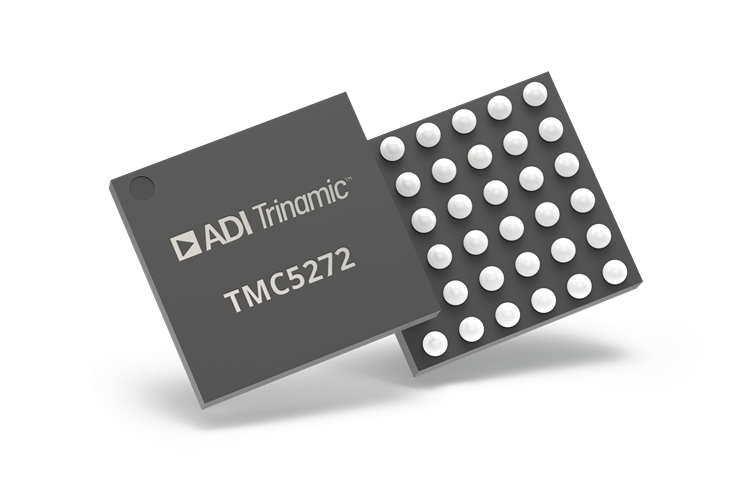

The TMC5272 is a miniaturized, high-performance, dual-axis stepper motor controller and driver IC with serial communication interfaces (SPI, UART) and extensive diagnostic capabilities. It combines a flexible, jerk-optimized ramp generator for automatic positioning with industries’ most advanced stepper motor drivers based on a 256-µsteps built-in indexer and four fully integrated 20V, 1.5AMAX H-bridges plus non-dissipative Integrated Current Sensing (ICS).
