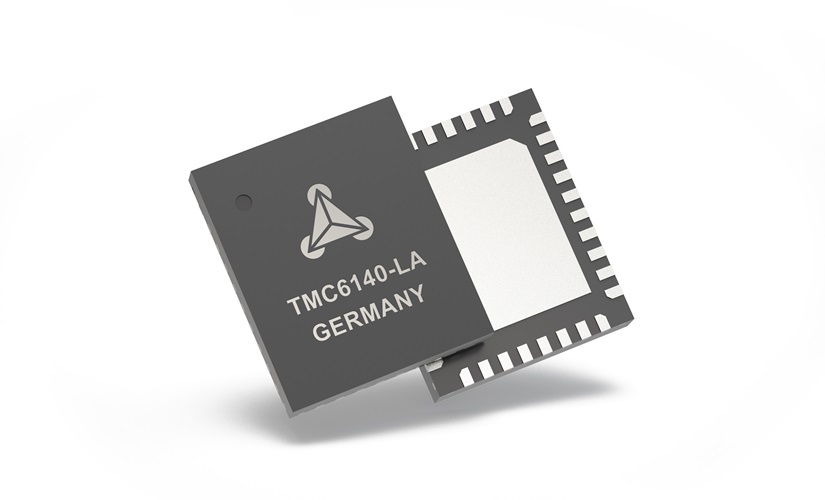

TMC6140

推荐新设计使用

Low voltage BLDC motor driver 5 to 30V, for external N-channel MOSFETs, integrated lowside chargepump for low RDSon at low battery voltage

TI德州仪器 TMC6140 产品介绍

2026-04-14 0次

说明

3-phase motors up to 100 A coil current (external MOSFETs)
Voltage Range 5 to 30 V DC
Gate Drive 0.5 A or 1.0 A
3V3 Switching Regulator (0.5 A) with internal Schottky diode (up to 100 mA)
Diagnostics output via UART-TxD

Charge pump pin to utilize buck converter for step-up converter
3 Bottom Shunt Amplifiers
Analog programmable short detect
2 Low Power Modes with 0.25 mA standby current consumption Applications

特性

TMC6140 is a fully integrated universal 3-phase MOSFET gate driver for PMSM servo or BLDC motors. External MOSFETs for up to 100 A motor current are supported. Three bottom shunt amplifiers allow easy current sensing and enhanced commutation of the motor. A switching regulator (3.3 V, 0.5 A, internal Schottky diode for up to 100mA) generates enough power for the IOs and the micro controller. Further on, it can serve as step-up converter to stabilize statically the gate voltages of the MOSFETs. A DIAG output for further diagnostics and two different power down modes are available.

APPLICATIONS:
