说明

2-phase stepper motors from 1A to several 10A coil current
Step/Dir Interface with microstep interpolation MicroPlyer™
Voltage Range 8 to 60V DC
SPI Interface
Highest Resolution 256 microsteps per full step
StealthChop2™ for quiet operation and smooth motion
Resonance Dampening for mid-range resonances

SpreadCycle™ highly dynamic motor control chopper
DcStep™ load dependent speed control
StallGuard2™ high precision sensorless motor load detection
CoolStep™ current control for energy savings up to 75%
Passive Braking and freewheeling mode
Full Protection & Diagnostics
Compact Size 7x7mm2 (body) TQFP48 package

特性

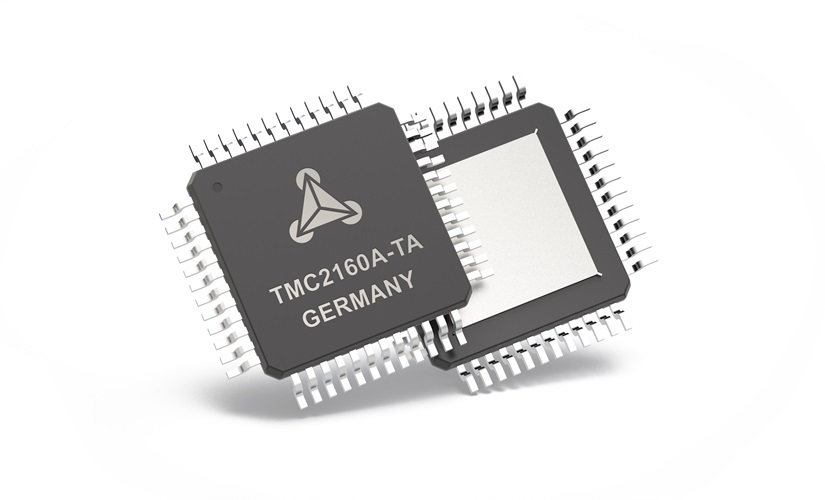

The TMC2160 is a high-power stepper motor gate driver IC with SPI interface. It features industries’ most advanced stepper motor driver with simple Step/Dir interface.

Using external transistors, highly dynamic, high torque drives can be realized. Based on ADI Trinamic's sophisticated SpreadCycle™ and StealthChop™ choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions.

The fully compatible TMC5160 offers an additional motion controller to make stepper motor control even easier.
