TI德州仪器 TMC2300 产品介绍

2026-04-14 0次

说明

Voltage Range 2V (1.8V) to 11V DC
Battery Operation 1-2 Li-Ion cells, or min. 2 AA / NiMh cells
2-phase Stepper Motors up to 1.2A RMS, 2A peak
Standby <50nA typ. current draw
STEP/DIR Interface up to 256 microsteps for stepper motor
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
Low RDSon LS 170mΩ & HS 170mΩ (typ.)

Low RDSon LS 170mΩ & HS 170mΩ (typ.)
No Sense Resistors Option using feed-forward regulation
Automatic Standby current reduction
Stall Detection StallGuard4 in StealthChop mode
CoolStep load dependent energy saving up to 90%
Single Wire UART for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics

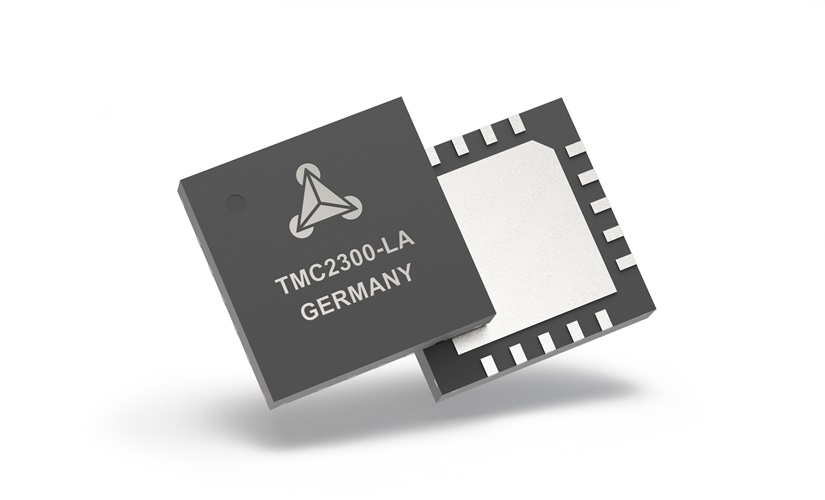

Tiny of QFN 3*3 with 20 pins

特性

The TMC2300 low voltage stepper motor driver is intended for battery-operated, space and standby-power critical driver applications. Its silent drive technology StealthChop™ enables non-bugging motion control for portable, home and office applications. A highly efficient power stage, boosted by an internal charge pump for best in-class RDSon resistance, provides high motor current from a tiny package even at low supply voltages. With this, dual AA batteries can be drained down to typically 2.0V (voltage must not drop below 1.8V, provide sufficient supply buffer capacitors).
