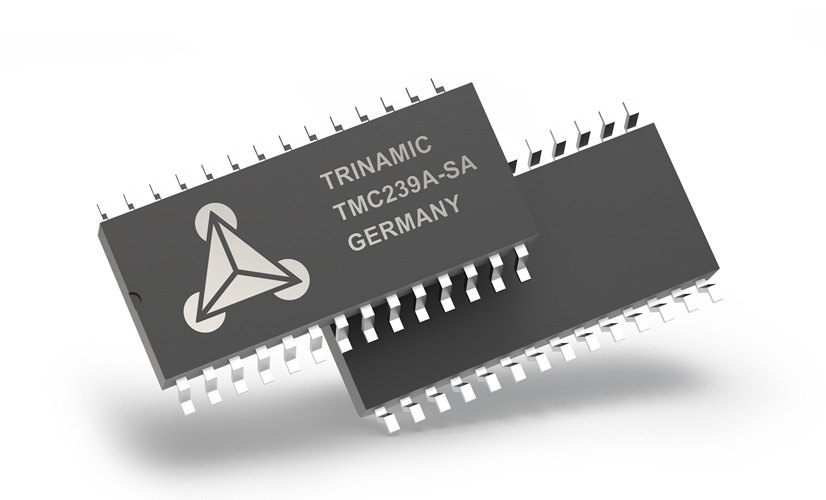

TI德州仪器 TMC239 产品介绍
2026-04-14
0次
说明
- High Current up to 7A RMS using 4 Dual-MOS transistors.
- Voltage Range 7 V to 36 V DC
- 3.3 V or 5 V DC for digital part
- SPI & External Analogue / Digital Signals
- Microstep Resolution up to 64 microsteps per full step
- Low Power Dissipation via low RDS-ON power stage
- Protection: overvoltage, overtemperature & short circuit
- Diagnostics: overcurrent, open load, 2 level overtemperature
- Mixed Decay for smooth motor operation
- Slope Control for reduced electromagnetic emissions
- Current Control for cool motor and driver
- Standby and Shutdown Mode
特性
The TMC239 is a smart high current microstepping driver for bipolar stepper motors. It provides an SPI interface as well as the classical analog / digital control. A full set of protection and diagnostic features makes this device very rugged. It directly drives external MOSFETs for currents up to 6A. This way it reaches an extremely high efficiency and allows driving of a high motor current without cooling measures even at high environment temperatures. With the new chip-scale QFN package a 4A motor driver can be realized on the size of a stamp!
The high motor current makes this device ideal for miniaturized highly dynamic and high torque drive systems.
APPLICATIONS- Textile, Sewing Machines
- Office Automation
- Printer and Scanner
- ATM
- Cash recycler
- POS
- Antenna Positioning
- Pumps and Valves
- Lab Automation
- Liquid Handling
- Medical
