说明

High Motor Current up to 10A using external (N&P) MOSFETs.
Highest Voltage 5V to 60V DC; more w. ext. gate driver
Highest Resolution up to 256 microsteps per full step
Small Size 5x5mm QFN32 package
Low Power Dissipation synchronous rectification
Protection & Diagnostics short to GND, overtemperature & undervoltage; short to VS & overcurrent
Stand Alone option

EMI-optimized slope & current controlled gate drivers
StallGuard2™ high precision sensorless motor load detection
CoolStep™ load dependent current control saves up to 75%
MicroPlyer™ 256 microstep smoothness with 1/16 step input.
SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
Improved Silent Motor operation

特性

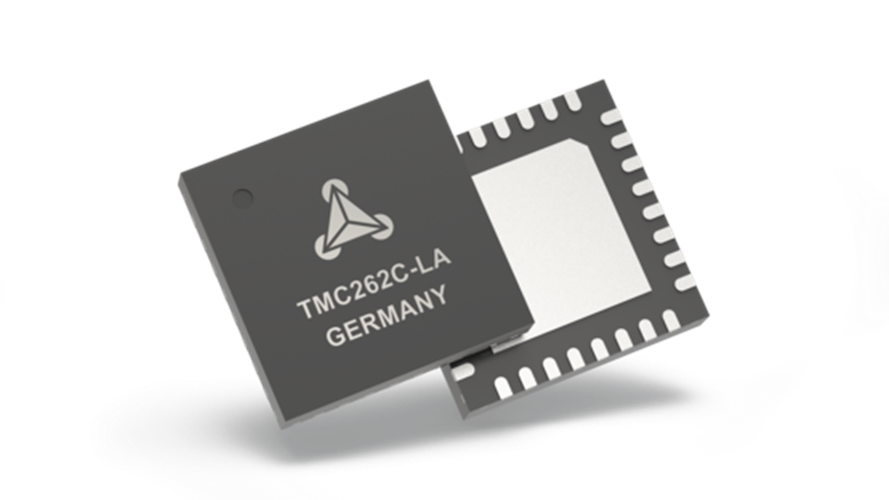

The TMC262C drivers for two-phase steppermotors offer an industry-leading featureset, including high-resolution microstepping, sensorless mechanical loadmeasurement, load-adaptive power optimization, and low-resonance chopper operation. Standard SPI™ and STEP/DIRinterfaces simplify communication. TheTMC262 uses four external N- and P-channel dual-MOSFETs for motor currentsup to 10A RMS and up to 60V. Integratedprotection and diagnostic features supportrobust and reliable operation.High integration, high energy efficiencyand small form factor enable miniaturizeddesigns with low external componentcount for cost-effective and highlycompetitive solutions.The new –C device improves motor silenceand adds low side short protection.
