TI德州仪器 TMC429-I 产品介绍
2026-04-14
0次
说明
- Allows step / direction signal extraction from TMC429 output data stream
- Programmable pulse shaping for step / direction interface
- 24 bit integrated position resolution
- Programmable prescaler for Incremental Encoder Interface
- 4-times evaluation of encoder signals
- Fast 32 bit SPITM interface
- Can share SPITM interface with TMC429 and supplies separate interrupt output
- Integrates Reference Switch Multiplexers
- Package: TQ100
特性

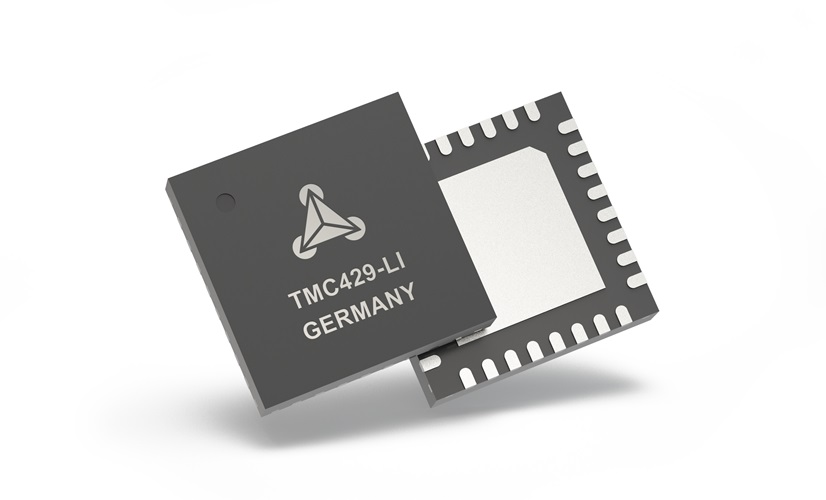

The TMC429 is a triple-axis dedicated motion controller for laboratory automation, 3D-printing, scanners and other automated equipment applications. It is usable as a trapezoidal ramp generator. The device is designed for an operating voltage of 3.3V to 5V. The TMC429 provides a SPI controller and driver interface.
APPLICATIONS
- CCTV, Security
- Antenna Positioning
- Heliostat Controller
- Battery powered applications
- Office Automation
- ATM, Cash recycler, POS
- Lab Automation
- Liquid Handling
- Medical
- Printer and Scanner
- Pumps and Valves
