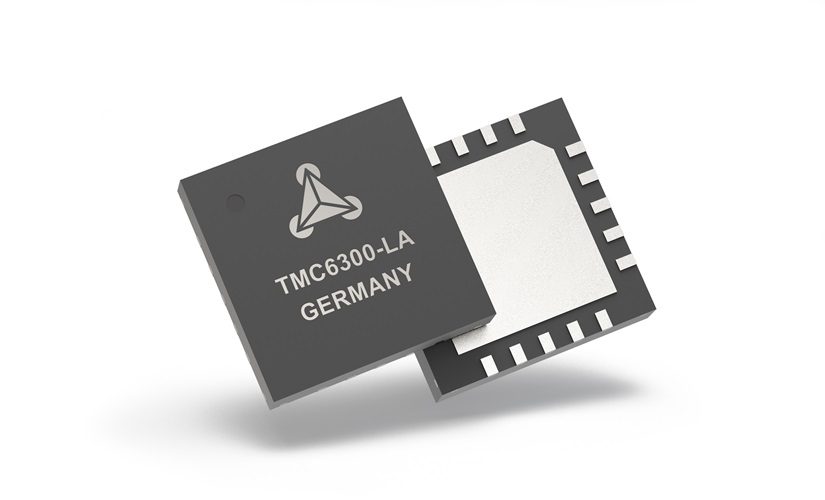

TI德州仪器 TMC6300 产品介绍
2026-04-14
0次
说明
- Voltage Range 2V (1.8V) to 11V DC
- Battery Operation 1-2 Li-Ion cells, or min. 2 AA / NiMh cells
- 3-Phase motors up to 2A (peak)
- Direct Bridge control for BLDC or PMSM sine-commutation
- Standby <50na typ.="" current="">
- Low RDSon LS 170mΩ & HS 170mΩ (typ.)
- Full Protection & Diagnostics output

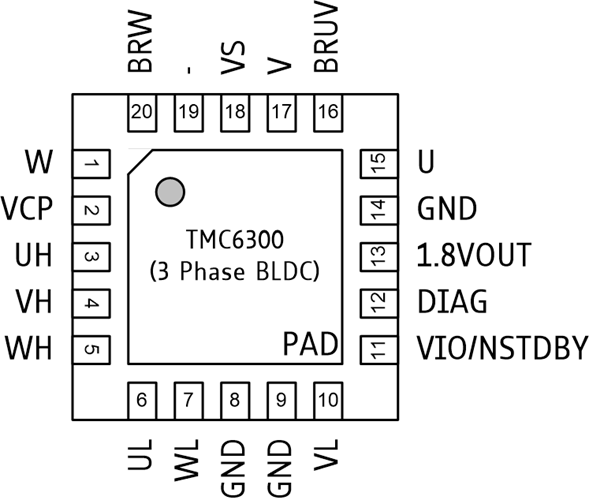

- Tiny of QFN 3*3 with 20 pins
特性
Working from a single Li-Ion cell or dual AA batteries the TMC6300 is optimally suited for battery operated equipment. Operate a BLDC motor with block or sinecommutation using 6-line control from a CPU. Integrated power-MOSFETs handle motor current up to 2A. Protection and diagnostic features support robust and reliable operation. Its integrated chargepump for best-in-class RDSon and ultra-low standby current ensure best efficiency even at low supply voltage and longest battery life.
