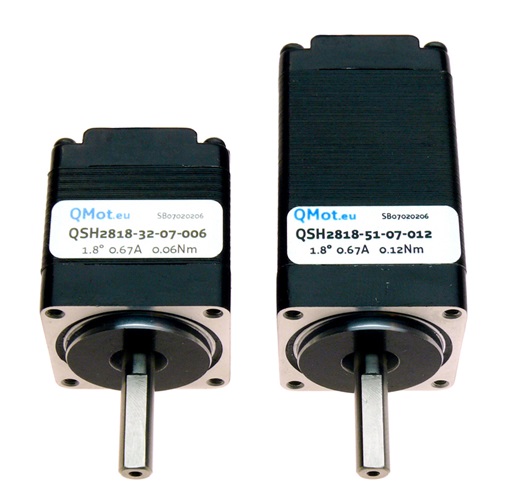

TI德州仪器 QSH2818-51-07-012-8k 产品介绍
2026-04-14
0次
说明
- NEMA 11 mounting configuration
- Flange max. 28.0mm * 28.0mm
- 5mm Axis diameter, 20mm axis length
- Step angle: 1.8˚
- Optimized for microstep operation
- Optimum fit for TMC222 / TMC236 / TMC246 / TMC262 based driver circuits
- 4 Wire connection
- CE approved
- Variants with encoder: 10000 lines/ 40000 counts
特性
NEMA11 (28mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.
Variants include small size optical incremental encoder kit. It comes with a resolution of 8192 lines (32768 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
