说明
- Ultrawideband frequency range: 1 MHz to 30 GHz
- Attenuation range: 16 dB typical steps to 48 dB
- Low insertion loss
- 1.5 dB to 8 GHz
- 2.0 dB to 18 GHz
- 2.8 dB to 30 GHz
- ±(0.20 + 2.3% of attenuation state) dB typical up to 8 GHz
- ±(0.30 + 3.2% of attenuation state) dB typical up to 18 GHz
- ±(0.30 + 6.5% of attenuation state) dB typical up to 30 GHz
- ±0.8 dB typical up to 8 GHz
- ±1.3 dB typical up to 18 GHz
- ±3.3 dB typical up to 30 GHz
- High input linearity
- P0.1dB insertion loss state: 30 dBm typical
- P0.1dB other attenuation states: 30 dBm typical
- IP3 insertion loss state: 51 dBm typical
- IP3 other attenuation state: 49 dBm typical
- Input at ATTIN and ATTOUT
- 30 dBm typical steady state average
- 33 dBm typical steady state peak
特性
The ADRF5717 is a silicon, 2-bit digital attenuator with 48 dBattenuation range in 16 dB steps supporting glitch-free operation.
The ADRF5717 operates from 1 MHz to 30 GHz with better than2.8 dB of insertion loss and better than 3.3 dB attenuation accuracy.
The ATTIN and ATTOUT port of the ADRF5717 have an RF powerhandling capability of a 30 dBm steady state average and a 33 dBmsteady state peak.
The ADRF5717 requires a dual-supply voltage of +3.3 V and −3.3V. The device features parallel mode control and complementarymetal-oxide semiconductor (CMOS)-/low voltage transistor to transistorlogic (LVTTL)-compatible controls.

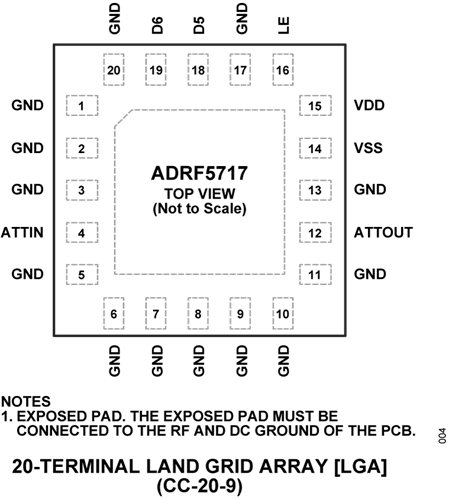

The ADRF5717 can also operate with a single positive supplyvoltage (VDD) applied while the negative supply voltage (VSS) is tiedto ground. See the Theory of Operation section for more details.The ADRF5717 RF ports are designed to match a characteristicimpedance of 50 Ω. The ADRF5717 comes in a 20-terminal, 3 mm× 3 mm, RoHS compliant, LGA package and operates from −40°Cto +105°C
APPLICATION
- Industrial scanners
- Test and instrumentation
- Cellular infrastructure: 5G millimeter wave
- Military radios, radars, and electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
