TI德州仪器 ADMFM2001 产品介绍
2026-04-14
0次
说明
- Dual-channel 7 GHz to 30 GHz transmitter
- Dual independent channels
- Integrated upconversion mixers
- Integrated LO amplifiers
- Integrated IF filters
- Integrated driver amplifiers
- Single 5 V supply
- 50 Ω matched input and output
- 17.00 mm x 14.00 mm, 204-ball BGA_CAV
特性

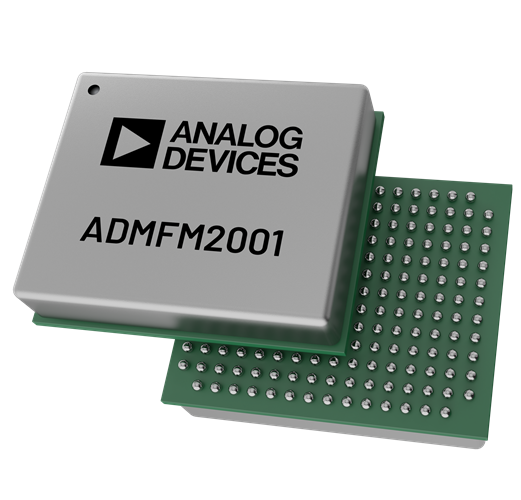

The ADMFM2001 is a dual-microwave upconverter, system-inpackage(SiP) module, with an input intermediate frequency (IF)frequency range covering 0.5 GHz to 5.6 GHz and with output RFand local oscillator (LO) ranges from 7 GHz to 30 GHz. There aredual LO feeds with integrated amplifiers to drive the mixers in eachchannel. Each upconversion path consists of two low-pass filters,an RF amplifier, a mixer, and an RF driver amplifier.
Fabricated using a combination of surface mount and bare diecomponents, the ADMFM2001 comes in a compact, shielded,17.00 mm × 14.00 mm, 204-ball pre molded cavity ball grid array[BGA_CAV] and operates over a temperature range of −40°C to+85°C.
APPLICATIONS
