说明

27 GHz to 31 GHz frequency range
Programmable Amplifier bias
Power Consumption (quiescent)

Minimum Bias: 570 mW
Nominal Bias: 700 mW

0 to 360 phase adjustment range
5.625 phase step size/resolution
≥31 dB gain adjustment range
≤0.5 dB gain resolution
Memory for 128 prestored beamstates

64 Beamstates per Polarization

User programmable Sequencer for Beamstate selection
FIFO Memory for 32 beamstates

16 Beamstates per Polarization

Variable SPI length for flexible & efficient Beam Commands

Update, Reset, & Mute from 1 up to 16 beams

3-wire or 4-wire SPI interface
Package: 5 mm × 5mm WLCSP

特性

The ADAR3003 is a 27 to 31 GHz single beam, 4 element dual polarized transmit beamforming IC for phased array antennas. Each of the 4 elements have horizontal and vertical polarization. There are 8 RF channels that provide a ≥31 dB gain adjustment range and 360 degrees of phase adjustment range, with resolution of less than ≤0.5 dB and 5.625 degrees, respectively, via Variable Amplitude and Phase (VAP) blocks. Each VAP contains a Digital Stepped Attenuator (DSA) and Phase Shifter. Each channel has an integrated RF power detector at its output, with a 30 dB range.

Access of all the on-chip control registers and memory is through a simple 3-wire or 4-wire serial port interface (SPI). In addition, four address pins allow SPI control of up to 16 devices on the same serial lines. Four VAPs’ worth of data is a single beamstate. The random access memory (RAM) has storage for up to 128 beamstates, organized into 64 beamstates per polarization. The on-chip sequencer selects and advances the beamstate being sourced from either the RAM or the FIFO.

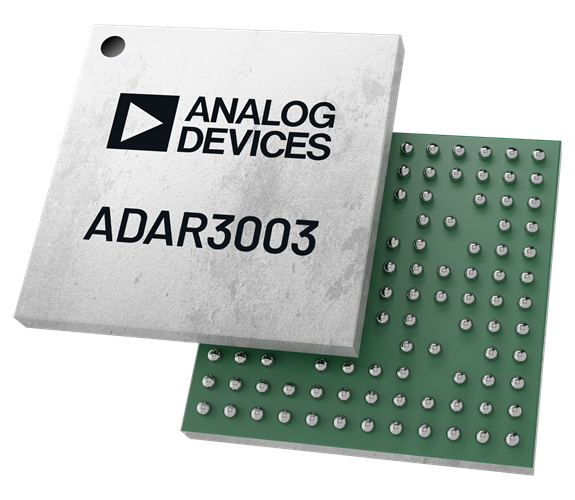

The ADAR3003 is available in a 136-ball 5 m × 5 mm Wafer Level Chip Scale Package (WLCSP) and is specified from −40°C to +85°C.

APPLICATIONS

Mobile Ka Band Satcom Applications
