说明

17.7 GHz to 21.2 GHz frequency range
Low Power Consumption = 362mW (nominal bias setting)

8 Programmable Amplifier Bias settings

0 to 360 degree phase adjustment range
5.625 degree step size/resolution
≥31 dB gain adjustment range
≤0.5 dB gain resolution
Memory for 256 prestored beam positions

64 Beamstates per Polarization per Beam

User programmable Sequencer for Beamstate selection
FIFO Memory for 64 beam positions

16 Beamstates per Polarization per Beam

8-bit ADC for DC Input & Integrated Temperature Sensor
3-wire or 4-wire SPI interface
6.6 mm × 6.6 mm WLCSP

特性

ADAR3002 is a 17.7 to 21.2 GHz dual beam, 4 element dual polarized beamforming IC for phased array antennas. Each of the 16 RF channels provide a ≥31 dB gain adjustment range and 360 degree phase adjustment, with resolution of less than ≤0.5 dB and 5.625 degrees, respectively, via Variable Amplitude and Phase (VAP) blocks. Each VAP contains a Digital Stepped Attenuator (DSA) and Phase Shifter.

Access to on-chip control registers and memory is through a simple 3-wire or 4-wire serial port interface (SPI). In addition, four address pins allow SPI control of up to 16 devices on the same serial lines. The random access memory (RAM) has storage for up to 256 beamstates, organized into 64 beamstates per polarization per beam. The sequencer selects and advances the beamstate being sourced from either the RAM or the FIFO.

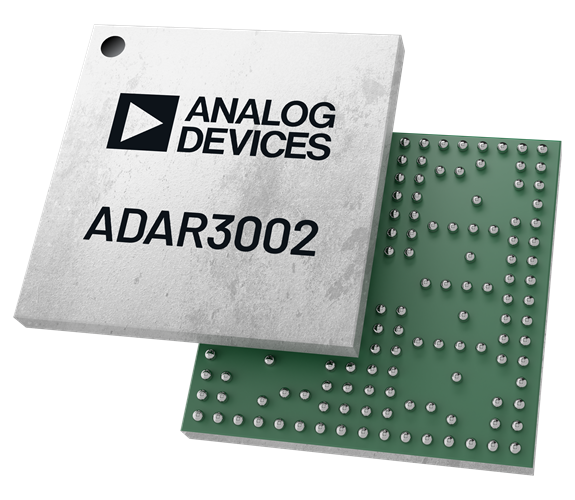

ADAR3002 is available in a 176-ball 6.6 x 6.6 mm Wafer Level Chip Scale Package (WLCSP) and is specified from −40°C to +85°C.

APPLICATIONS

Mobile Ka Band Satcom Applications
