TI德州仪器 ADMV8505 产品介绍
2026-04-14
0次
说明
- Digitally tunable, octave, band-pass tuning
- 3 dB bandwidth: 9% ± 2%
- Rejection (20 dB): 19% away from fCENTER
- Single chip replacement for discrete filter banks

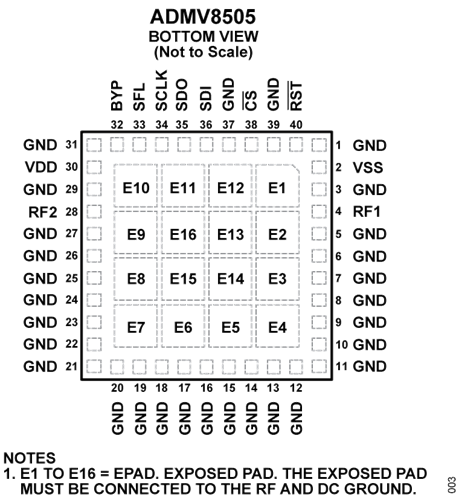

- Compact 10 mm × 10 mm LGA package
特性

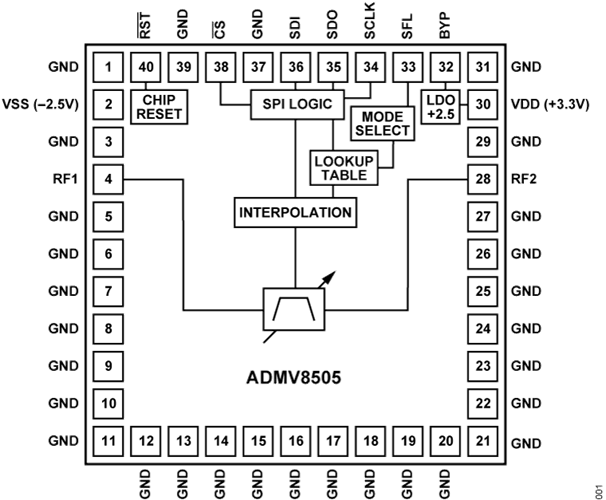

The ADMV85051 is an RF band-pass filter that features a digitallyselectable frequency of operation. The filter center frequency(fCENTER) can be adjusted from 225 MHz to 520 MHz using an8-bit value (256 states) that incorporates a patented calibrationtechnique.
The typical 3 dB bandwidth is 9%, and adjustability is ±2%. Insertionloss is typically 4.5 dB, and the 20 dB rejection is 19% awayfrom the fCENTER, which is ideally suited for minimizing systeminterferers.
The ADMV8505 tunable filter can be used as a smaller alternativeto large switched filter banks and discrete component-based tunablefilters, providing a dynamically adjustable solution in advancedcommunications applications.
APPLICATIONS
- Land mobile radios
- Test and measurement equipment
- Military radars and electronic warfare and electronic countermeasures
- Satellite communications
- Industrial and medical equipment
