TI德州仪器 HMC1160 产品介绍
2026-04-14
0次
说明
- Dual output: fO = 8.45 GHz to 9.3 GHz
- fO/2 = 4.225 GHz to 4.65 GHz
- POUT: 12 dBm
- Phase noise: −116 dBc/Hz at 100 kHz
- No external resonator needed
- RoHS compliant, 5 mm × 5 mm SMT package: 25 mm2
特性

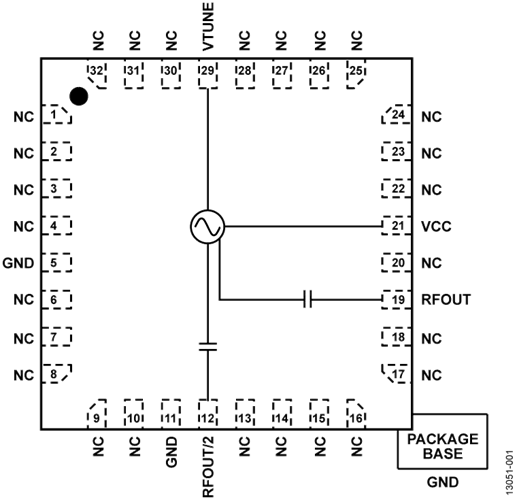

The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.
Because of the monolithic construction of the oscillator, output power and phase noise performance are excellent over temperature.
Power output is 12 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS compliant SMT package and requires no external matching components.
APPLICATIONS
- Point to point and multipoint radio
- Test equipment and industrial controls
- VSAT
