ADI亚德诺 ADH675S 产品介绍
2026-03-09
0次
特性
- Equivalent Input Bandwidth: 10 GHz
- Propagation Delay: 100 ps
- Overdrive & Slew Rate Dispersion: 10 ps
- Minimum Pulse Width: 60 ps
- Resistor Programmable Hysteresis
- Differential Latch Control
- Power Dissipation: 100 mW
- RSPECK and RESECL Versions Available
- 16-Lead 3 mm x 3 mm SMT package
- Screened with guidelines to MIL-PRF-38535, Class Level S
产品详情和应用

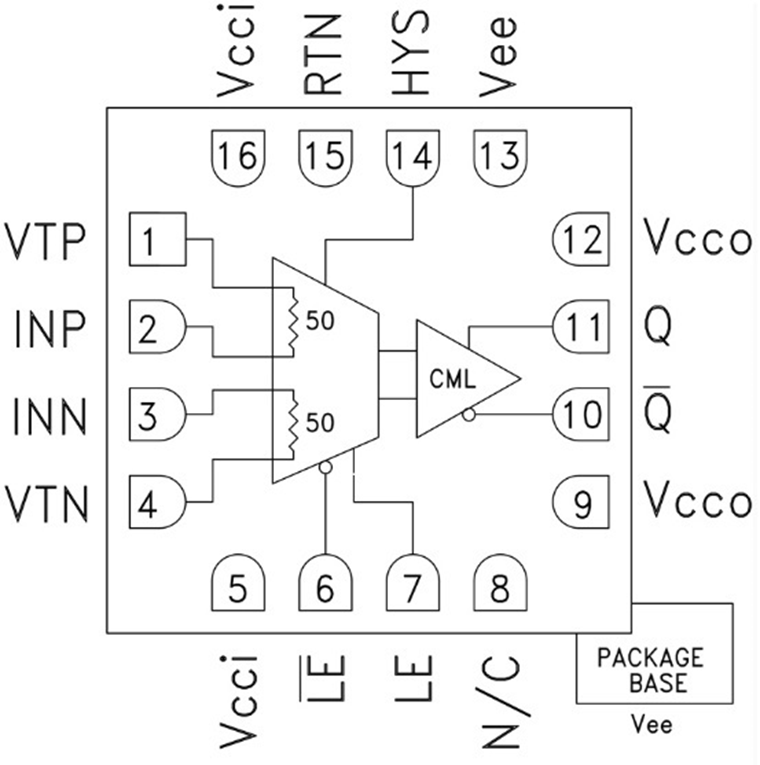

The ADH675S is a SiGe monolithic, ultra-fast comparator which features reduced swing CML output drivers and latch inputs. The comparator supports 10 Gbps operation while providing 100 ps propagation delay and 60 ps minimum pulse width with 0.2 ps rms random jitter (RJ).
Overdrive and slew rate dispersion are typically 10 ps, making the device ideal for a wide range of applications from ATE to broadband communications. The reduced swing CML output stage is designed to directly drive 400 mV into 50 Ohms terminated to GND. The ADH675S features high speed latch and programmable hysteresis and may be configured to operate in either latch mode, or as a tracking comparator.
Applications- High Speed Instrumentation
- Digital Receiver Systems
- Pulse Spectroscopy
- High Speed Trigger Circuits
- Clock & Data Restoration
- Military & Space
