ADI亚德诺 ADPA1116 产品介绍
2026-03-09
0次
特性
- Internally matched, 0.3 GHz to 6 GHz, 39.5 dBm, GaN power amplifier
- RF input and RF output AC-coupled
- Integrated drain bias inductors
- Output power: 39.5 dBm typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm)
- Power gain: 23.5 dB typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm)
- PAE: 40% typical from 0.5 GHz to 5 GHz (PIN = 16.0 dBm)
- Small signal gain: 33.5 dB typical from 0.5 GHz to 5 GHz
- Supply voltage: 28 V
- Quiescent current: 300 mA
产品详情和应用

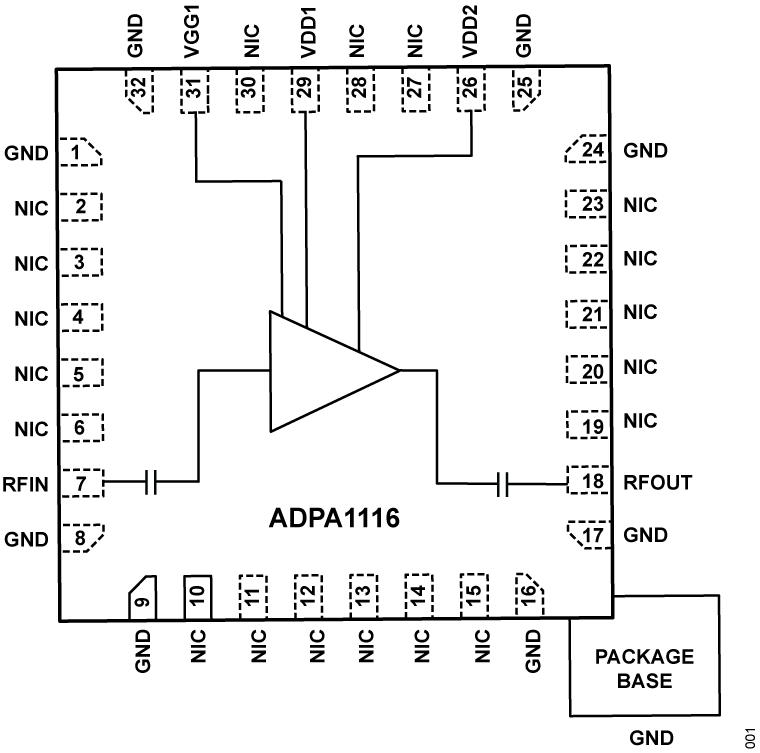

The ADPA1116 is a 0.3 GHz to 6 GHz power amplifier with a saturated output power (POUT) of 39.5 dBm, power added efficiency (PAE) of 40%, and a power gain of 23.5 dB typical from 0.5 GHz to 5 GHz at an input power (PIN) of 16.0 dBm. The RF input and RF output are internally matched and AC-coupled. A drain bias voltage of 28 V is applied to the VDD1 and VDD2 pins, which have integrated bias inductors. The drain current is set by applying a negative voltage to the VGG1 pin.

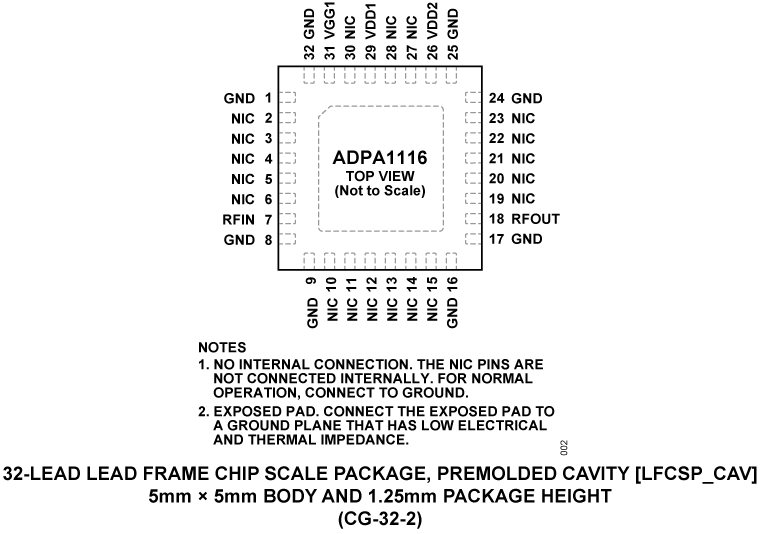

The ADPA1116 is fabricated on a gallium nitride (GaN) process, is housed in a 32-lead lead frame chip scale package, premolded cavity [LFCSP_CAV], and is specified for operation from −40°C to +85°C.
