特性

• P1dB output power: 15.5dBm
• Output IP3: 31.5dBm
• Gain: 16dB
• 50Ω inputs and outputs

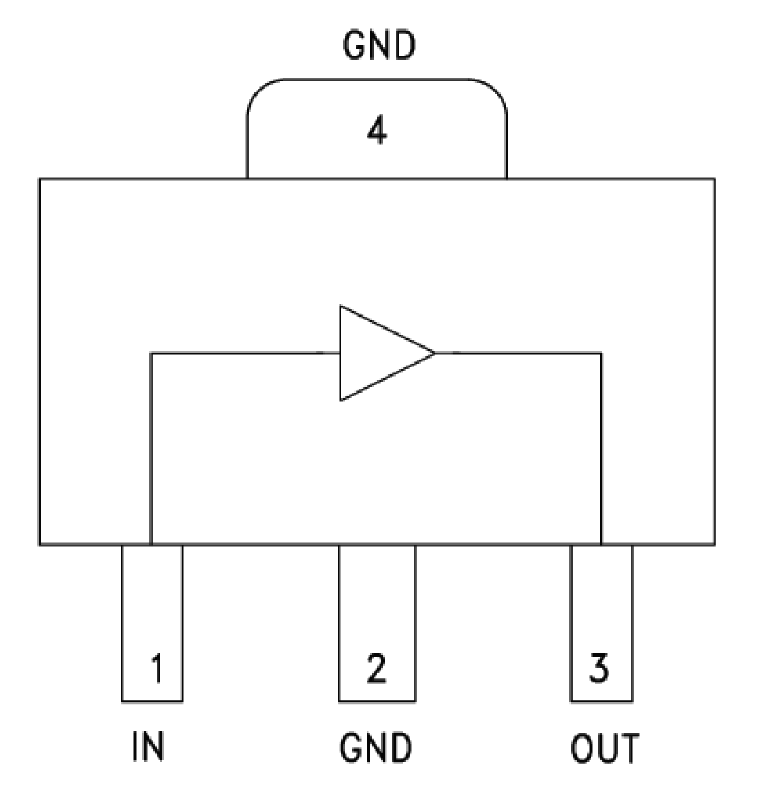

• Industry standard, 3-lead SOT-89 package
• Included in the HMC-DK001 designer’s kit

产品详情和应用

The HMC311AST89 is a monolithic microwave IC (MMIC), surface- mounted technology (SMT), DC to 6GHz amplifier. Packaged in an industry standard SOT89E, the amplifier can be used as either a cascadable 50Ω gain stage or to drive the LO of Analog Devices, Inc., mixers with up to a 16.5dBm output power. The HMC311AST89 offers 16dB of gain and an output IP3 of 31.5dBm while requiring only 54mA from a 5V supply. The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components.

APPLICATIONS

• Cellular/PCS/3G
• Fixed wireless and WLAN
• CATV and cable modems
• Microwave radios
