特性
- Wideband operation: 10 kHz to 22 GHz
- Single positive supply (self biased) typical: 5 V and 90 mA
- RBIAS drain current adjustment pin
- Gain: 14 dB typical from 10 kHz to 16 GHz
- Noise figure: 3.5 dB typical from 10 kHz to 16 GHz
- Extended operating temperature range: −55°C to +125°C

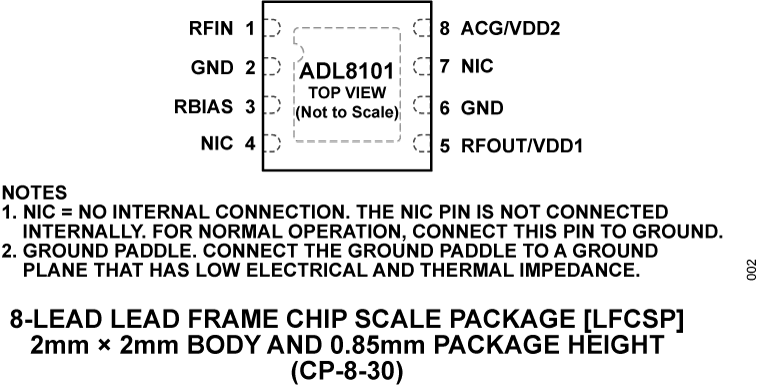

- RoHS-compliant, 2 mm × 2 mm, 8-lead lead frame chip scale package [LFCSP]
产品详情和应用
The ADL8101 is an ultrawideband low noise amplifier (LNA) that operates from 10 kHz to 22 GHz. The typical gain and noise figure are 14 dB and 3.5 dB, respectively, from 10 kHz to 16 GHz. The output power for 1 dB compression (OP1dB), output third-order intercept (OIP3), and output second-order intercept (OIP2) are 15 dBm, 26 dBm, and 29 dBm, respectively, from 10 kHz to 16 GHz. The nominal quiescent current (IDQ), which can be adjusted, is 90 mA from a 5 V supply voltage (VDD). The internally matched, DC-coupled RF input and output pins require external AC coupling capacitors along with a bias inductor on RFOUT.
The ADL8101 is fabricated on a pseudomorphic high electron mobility transistor (pHEMT) process. It is housed in an RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP and is specified for operation from −55°C to +125°C.
APPLICATIONS
- Telecommunications
- Instrumentation
- Radar
- Electronic warfare
