ADI亚德诺 ADSP1802 产品介绍
2026-03-09
0次
特性
- High performance 32-bit/40-bit floating-point processor for high performance audio processing
- SIMD computational architecture
- On-chip memory
- 5 Mb L1 on-chip RAM
- 8 Mb L2 RAM
- Maximum instruction rate up to 400 MHz
- Supports VISA
- Supports FIR, IIR, FFT accelerator
- DAI
- 8 SPORTs
- 4 PCGs
- 1 S/PDIF transceiver
- 4 ASRCs with −140 dB SNR performance
- 1 IDP/PDAP
- 1 DAI SRU
- DPI
- 2 SPIs
- 1 UART
- 12 flags
- 1 TWI
- 3 PWM modules (PWM1, PWM2, and PWM3)
- 2 general-purpose timers
- 1 DPI SRU2
- 1 thermal diode
- AEC-Q100 qualified for automotive applications
产品详情和应用

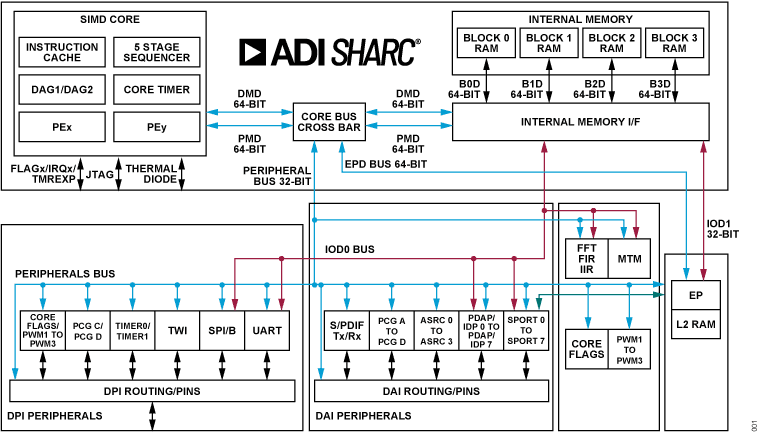

The ADSP1802 is a digital signal processor (DSP) that features Analog Devices, Inc. Super Harvard Architecture Single-Chip Computer (SHARC). The ADSP1802 is a 32-bit/40-bit floating point processor optimized for high performance audio applications with large on-chip RAM, multiple internal buses to eliminate I/O bottlenecks, and features an innovative digital applications interface (DAI).
Applications
- Audio and acoustic processing in cabin, including active sound design, advanced chime, hands free and voice preprocessing, active noise cancellation, and audio path management.
- Audio processing in consumer applications, including UI communication, professional audiovisual, hearables, and home theaters.
- Intelligent buildings with security and surveillance.
