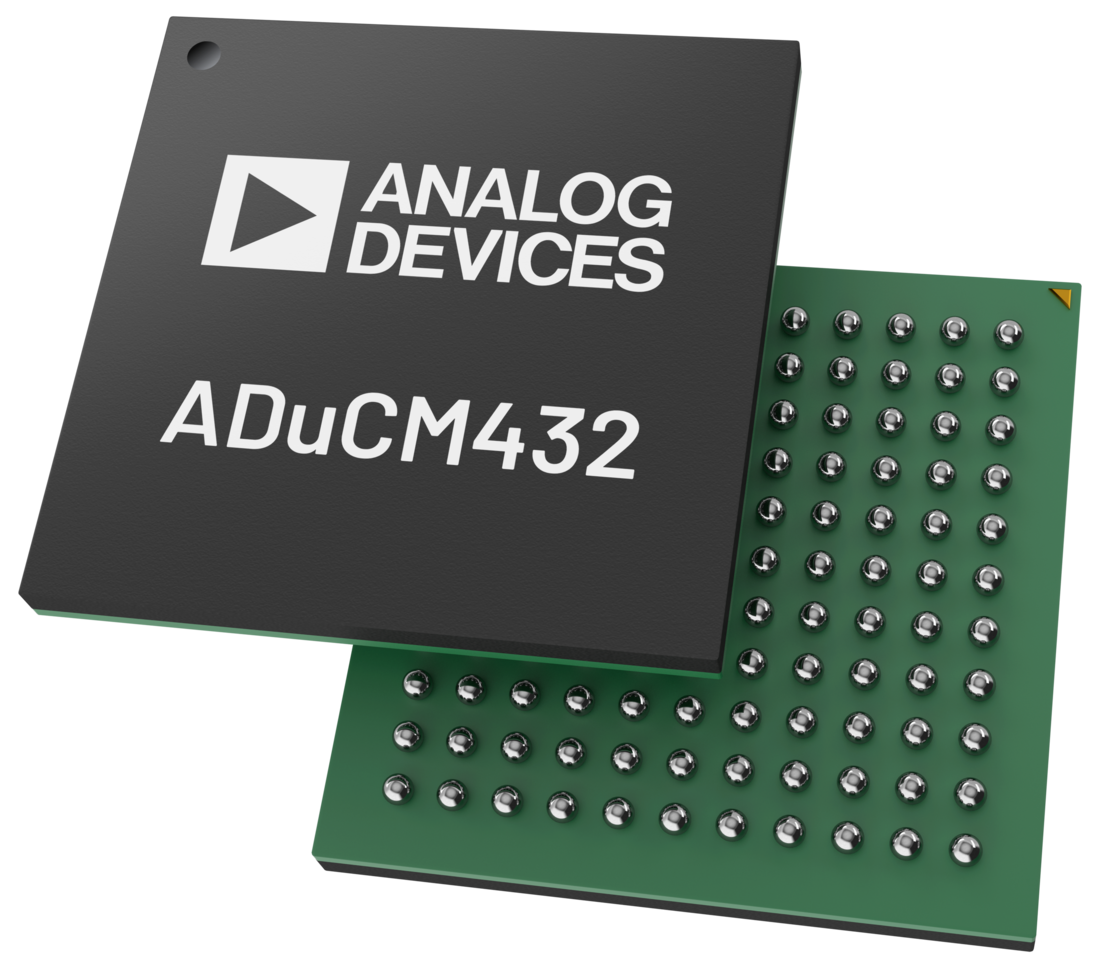

ADI亚德诺 ADUCM432 产品介绍

2026-03-09 0次

特性

Analog input and output
- Multichannel, 12-bit, 2 MSPS ADC
  - Up to 16 external channels
  - Power, VDAC, IDAC, and temperature monitor internal channels
  - Single-ended and differential modes
  - 0 V to V_REF analog input range
  - Input buffer included
  - Digital comparators
Up to nine, 12-bit voltage output VDACs
- 4-channel, selectable output range
  - 0 V to 2.5 V or AVDDx − 0.1 V
- 4-channel, 0 V to 2.5 V or AVDDx − 0.2 V
- 1-channel, 0 V to 2.5 V
Up to 4 voltage comparators with adjustable hysteresis voltage
TEC controller
- Optional Buck or LDO regulator modes if not using TEC
- Maximum heating and cooling current: 1.3 A
- Current and voltage monitoring and protection
- Soft start function
Microcontroller
- 32-bit Arm Cortex-M3 core, RISC architecture
- Serial wire port supports code download and debug
Clocking options
- 16 MHz on-chip oscillator
- 80 MHz PLL output
- External clock source

Memory
- 2× 512 kB independent Flash/EE memories
Software triggered, in circuit reprogrammability via I²C
On-chip peripherals
- 1× UART, 2× SPI, 2× I²C serial input and output
- GPIO with multilevel voltage (3.3 V, 1.8 V, and 1.2 V) digital inputs
- MDIO target up to
  产品详情和应用

  Applications
  - Optical networking—100G/200G/400G and higher frequency modules
  For more information on the ADuCM430, contact InfoOpticalNetwork@analog.com.
