特性

• 100V Maximum Input Voltage Independent of IC Supply Voltage V_CC
• 6V to 14V V_CC and Bottom Gate Driver Voltage
• 4V to 14V Top Gate Driver Voltage
• 1.3Ω Pull-Down, 1.6Ω Pull-Up
• Adaptive Shoot-Through Protection
• Three-State PWM Input with Enable Pin
• V_CC UVLO and Floating Supply UVLO
• Drives Dual N-Channel MOSFETs

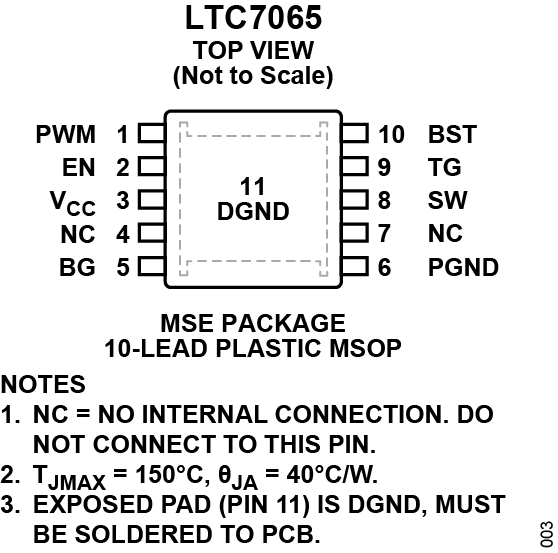

• Available in Thermally Enhanced 10-LEAD MSOP Package

产品详情和应用

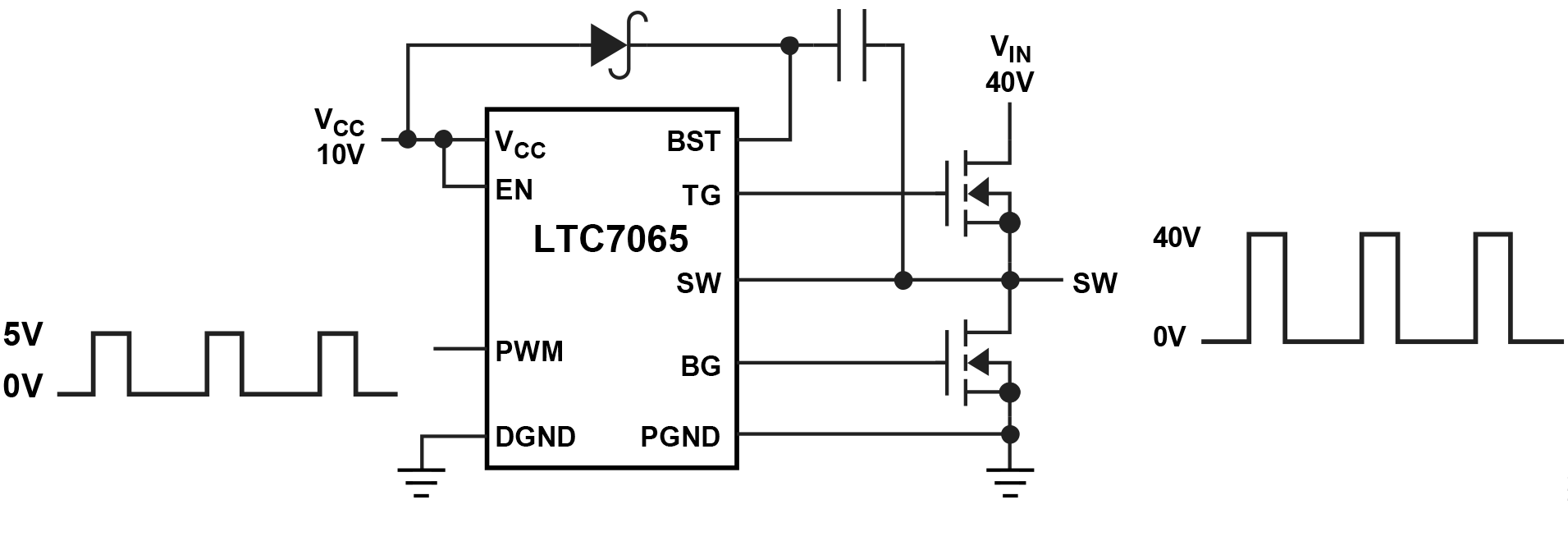

The LTC7065 is a half-bridge dual N-Channel MOSFET gate driver that operates at up to 100V input voltage and features a supply independent three-state PWM input logic.

The strong 1.3Ω pull-down and 1.6Ω pull-up drive capability can drive large gate capacitances of high-voltage MOSFETs with short transition times in high switching frequency applications. The adaptive shoot-through protection is designed for optimized efficiency and MOSFET cross-conduction protection.

The LTC7065 contains undervoltage lockout circuits on both the V_CC supply and floating driver supply that turn off the external MOSFETs when activated. See below for a comparison of the parts in this family.

Applications

• Industrial Power Systems
• Half-Bridge DC/DC Converters
• Telecommunication Power Systems
