特性

• Low Supply Current: 5μA (typ), 6.8μA (max) at 3.6V Over Temperature (+125°C)
• Factory-Set Reset Threshold Options from 1.02V to 4.8V in 50mV/100mV Increments
• Manual Reset Input
• Guaranteed Reset Valid to V_CC ≥ 1V
• Open-Drain Reset Output
• Power-Supply Transient Immunity
• -40°C to +125°C Operating Temperature Range

产品详情和应用

The ADPL62086 is a supervisory circuit that monitors voltages from 1.02V to 4.8V using a factory-set reset threshold. It includes a manual reset (MR) input, which allows an external logic circuit to initiate a reset.

The ADPL62086 features an open-drain, active-low reset output. The reset output asserts and remains asserted for the reset timeout period after the monitored voltage exceeds its threshold.

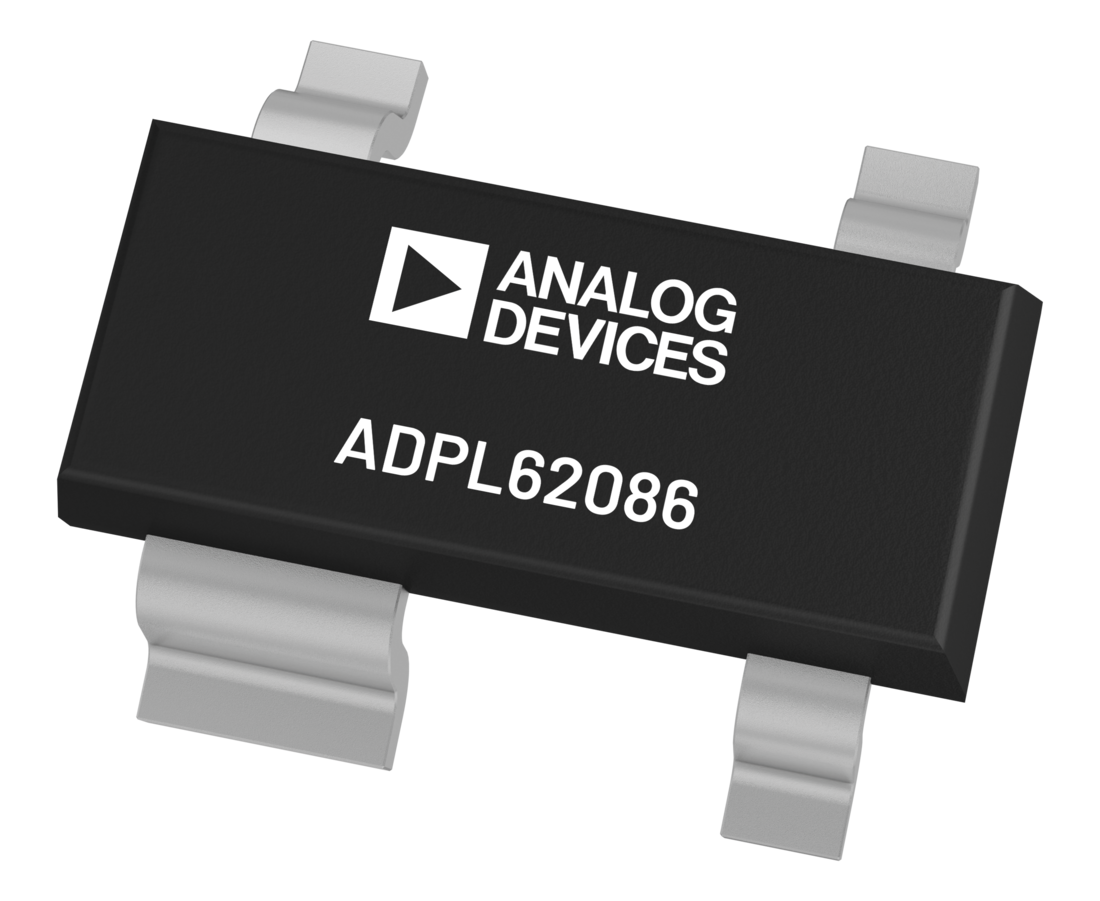

The ADPL62086 is available in a 4-lead SOT23 package. It operates over the -40°C to +125°C temperature range.

APPLICATIONS

• Portable/Battery-Powered and Industrial Equipment
• e-Readers/Tablets
• Smartphones
